Architecture

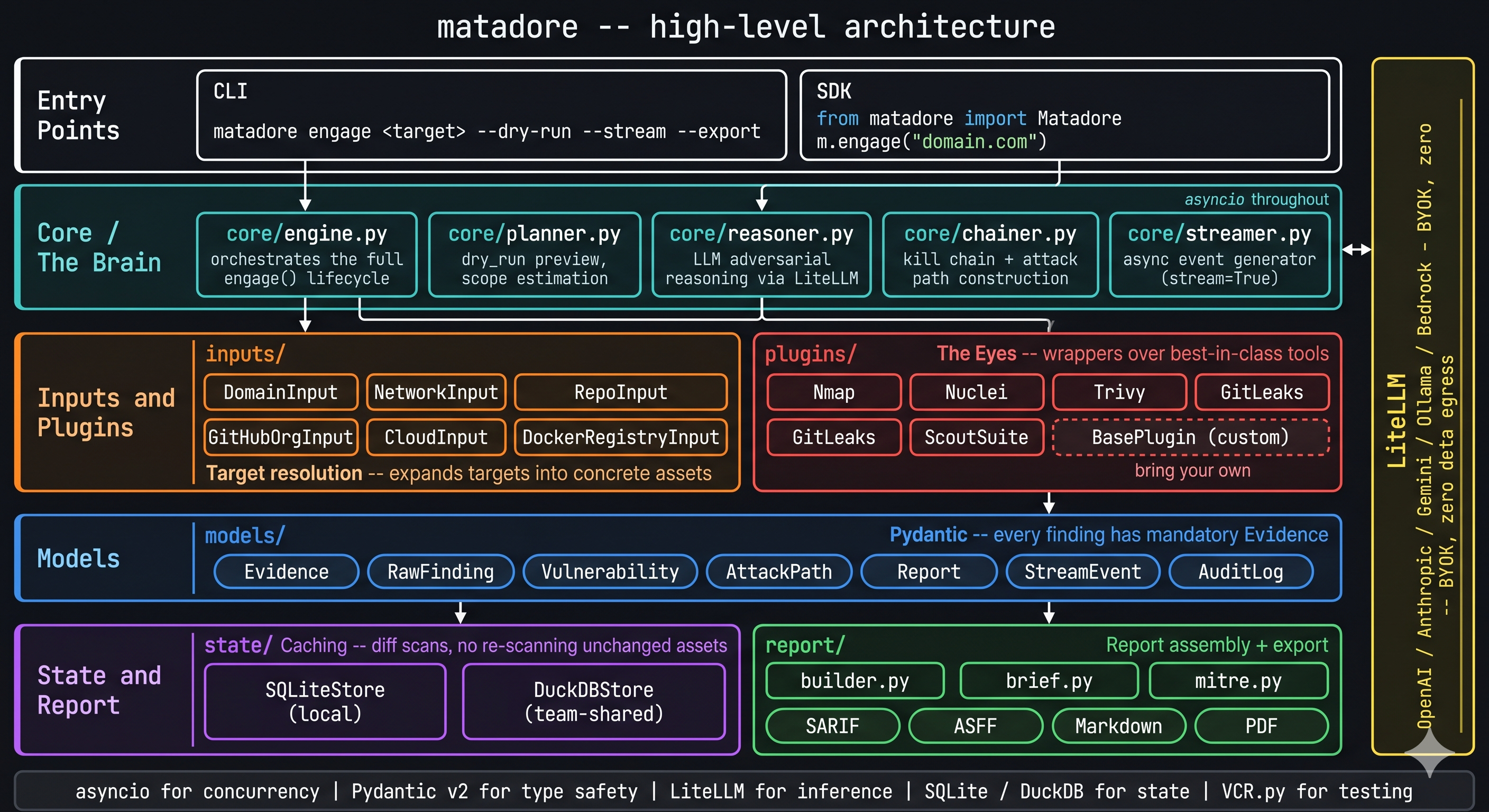

High-level architecture

Overview

Matadore is structured in five distinct layers:

Layer Package Responsibility
Entry points cli.py, __init__.py CLI and SDK surface
Core / Brain core/ Orchestration, LLM reasoning, kill chain construction
Inputs inputs/ Expand targets into concrete scannable assets
Plugins plugins/ Wrappers over best-in-class scanning tools
Models models/ Typed Pydantic domain objects with mandatory Evidence
State state/ Caching and diff scanning (SQLite / DuckDB)
Report report/ Assembly, narrative brief, and multi-format export

Core -- The Brain

The core/ package drives the full engagement lifecycle:

  • engine.py -- top-level engage() orchestration
  • planner.py -- dry_run=True scope preview
  • reasoner.py -- LLM-powered adversarial analysis via LiteLLM
  • chainer.py -- kill chain and attack path construction
  • streamer.py -- async event generator for stream=True mode

asyncio is used throughout the mapping phase so 100 IPs scan in parallel, not in sequence.

Plugins -- The Eyes

Matadore does not re-implement what nmap, nuclei, and trivy already do well -- it reasons over their output.

Plugin Tool Target types
Nmap nmap domain, network
Nuclei projectdiscovery/nuclei domain, network
Trivy aquasecurity/trivy docker_registry, repo
GitLeaks gitleaks repo, github_org
ScoutSuite nccgroup/ScoutSuite cloud

Extend with your own scanner by subclassing BasePlugin.

State and Caching

Backend Package Best for
SQLiteStore stdlib only Local single-user engagements
DuckDBStore requires pip install duckdb Team-shared, persistent across operators

Matadore caches AssetSnapshot records keyed by (engagement_id, asset). On repeated scans only assets whose checksum changed are re-processed.

Domain Model

See the Domain Models page for the full Pydantic model diagram.
